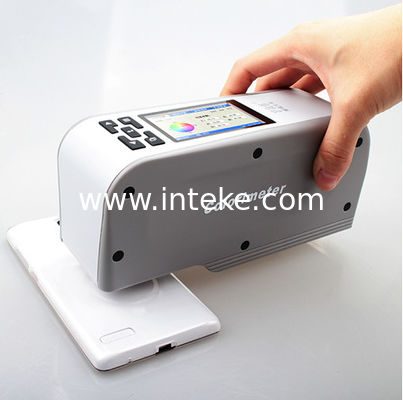

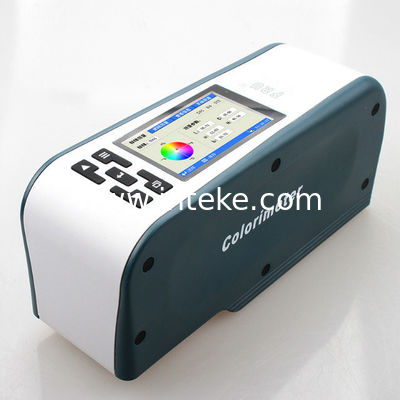

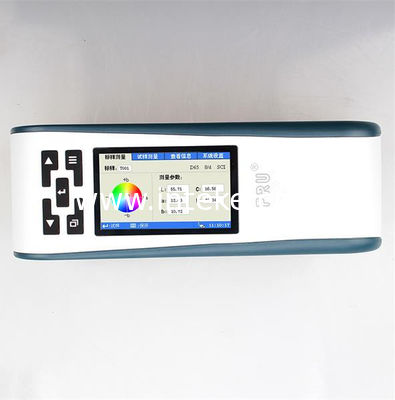

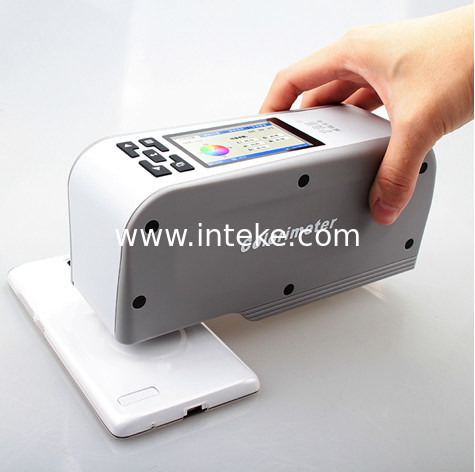

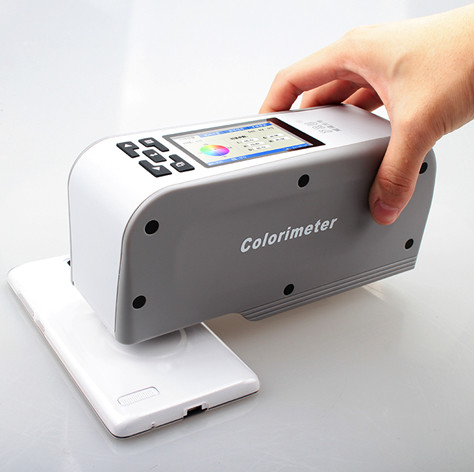

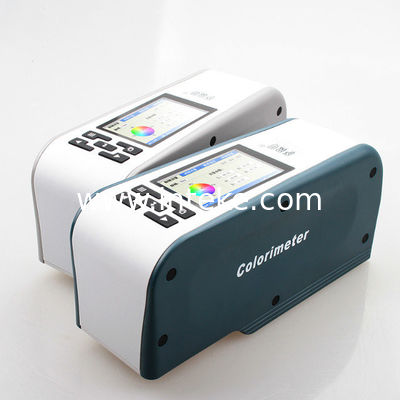

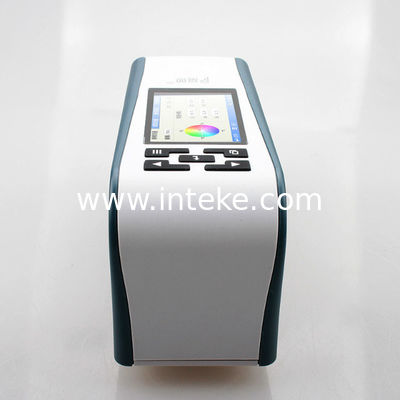

Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing

Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing

    • Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing
    • Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing
    • Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing
    • Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing
    • Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing
  • Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing

    Product Details:

    Place of Origin: China
    Brand Name: INTEKE
    Certification: CE
    Model Number: WF28

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Unit
    Price: Negotiation
    Packaging Details: Cartons
    Delivery Time: Goods in stock
    Payment Terms: T/T, Paypal, , D/P, D/A, Western Union, MoneyGram, L/C
    Supply Ability: 1000Unit/Month
    Minimum Order Quantity: 1Unit
    Contact Now
    Detailed Product Description
    Minimum Oeder Quantity: 1Unit Payment Terms: TT,LC,WU,etc.
    Supply Aility: 1000Unit/Month

    To know more about this product, please send your E-mail to us: inteke@vip.163.com or inteke@gmail.com.



    We will try our best to reply you asap.



    WF28 Precision Colorimeter



    WF28 colorimeter with competitive price, has these advantages of being easy to operate, easy to understand, affordable and so on. WF28 only have one measuring light source (D65); two kinds of color modes (CIE1976LAB, CIELCH); one color difference formula (△ E * ab); two language pattern (Simplified Chinese and English), and a universal measuring caliber (8MM) . WF28 colorimeter can store 100 standard data and 20000 sample data, you can also add mini-printers to do real-time printing measurement data. It can’t operate with "color analysis system" software functions. WF28 colorimeter detailed parameters as follows:




    Hand-held High-precision Colorimeter 8MM Caliber WF28 for color testing



    http://www.inteke.com/product/Colorimeter-WF28.htm





    Model WF28
    Display Mode CIELAB,CIELCH
    Color Difference Formula △E*ab
    Illumination Condition CIE Recommendation:8/d
    Light Source LED blue excitation
    Sensor Photodiode array
    Measurement Caliber φ8mm
    Measurement Condition Observer:CIE 10° Standard observer
    Light source: D65
    Contain light way:SCI SCE
    Measurement Range L: 0 to 100
    Repeated Accuracy △E<0.07(take the deviation average after 30 times measuring the whiteboard)
    Table Difference △E<0.2
    Measurement Interval 0.5 Sec.
    Storage Capacity Type sample data : 100 with testing sample data: 200
    Language Patterns Simplified Chinese/English
    Battery Charging Time 8 hrs
    Battery Li-ion battery, 5000 times Measurement
    Lifetime of Bulb 5 years more than 1.6 million measurements
    Display Screen TFT true color 2.8inch@(16:9) Resolution ratio:400x240
    Interface of External RS-232 (115200bps)- connected with micro printer
    Working Temperature Range 0℃-40℃(32℉-104℉)
    Storage Temperature Range -20℃-50℃(-4℉-122℉)
    Humidity Range Relative humidity less than 85%,without condensation
    Weight 700g
    Size 199*68*90mm
    Size of Exterior Package 400*240*340mm
    Standard Accessories 3000mAH Li-ion battery/AC adapter/User manual/Warranty card
    Optional Accessories Flour measuring device/Liquid measuring device/Micro printer
