Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571

Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571

    • Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571
    • Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571
    • Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571
  • Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571

    Product Details:

    Place of Origin: China
    Brand Name: INTEKE
    Model Number: Y571

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Unit
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: 1-3 working days
    Payment Terms: T/T, Western Union,Paypal,etc.
    Supply Ability: 10000Units/Month
    Contact Now
    Detailed Product Description
    Standard: GB/T420and GB/T3920、AATCC165 Weight: 21KG
    Rubbing Travel:: 104mm±3mm

    INTEKE Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571M





    To know more about this product, please send your E-mail to us: inteke@vip.163.com or inteke@gmail.com.



    We will reply you at first time.

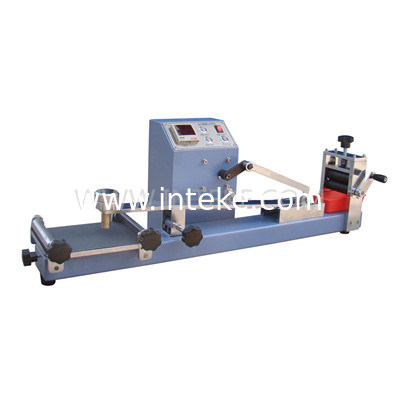

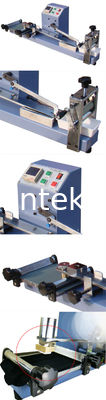

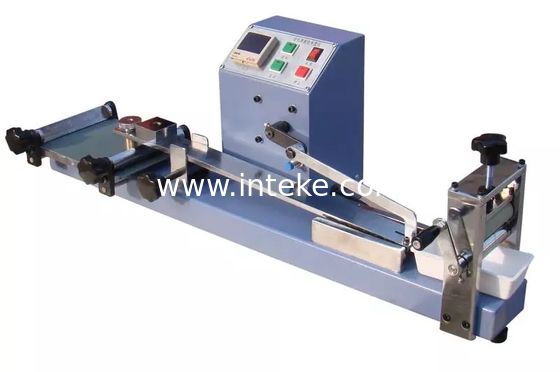

    Y571 Dying Rubbing Fastness tester is mainly used in industries of cotton, wool, ramie, silk, knitting and printing and dying etc, which is an instrument to test color dry-resistant, wet rubbing and fastness to brushing of all kinds of textiles.

    This tester is used to test the quality in enduring dry,wet rubbing testing in the feather.

    It is accorded with demand in GB/T420and GB/T3920,AATCC165





    Textile Frabic Color Fastness To Rubbing Tester / Crock Meter Y571



    Main Technical Parameters

    1,Diameter of rubbing-head Φ is 16±0.2mm (roundness) and 19×25.4mm ( squareness).

    2,Down pressure of rubbing-head is 9±0.18N.

    3,Moving scale of rubbing-head is 104±3mm.

    4,Rubbing speed: one time to-and-fro every second (60±2 times per min).

    5,The thickness of underlay on workplace is 1~1.5mm (thin and white felt).

    6,Setting range of the to-and-fro movement: 1~9999

    7,Power voltage is AC 220V 50HZ.

    8,Tester’s full power is 20W.

    9,Figure dimension: 750mm×200mm×200mm.

    10,Weight:21Kg
