    Product Details:

    Place of Origin: China
    Brand Name: INTEKE
    Model Number: Y571M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Unit
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: 1-3 working days
    Payment Terms: T/T, Western Union,Paypal,etc.
    Contact Now
    Detailed Product Description
    Standard: BS 1006 D02 ISO 105×12/D02 AATCC 8/165 BS 4655 GB/T420, GB/T3920-2008 Weight: 15KG
    Rubbing Travel:: 104mm±3mm

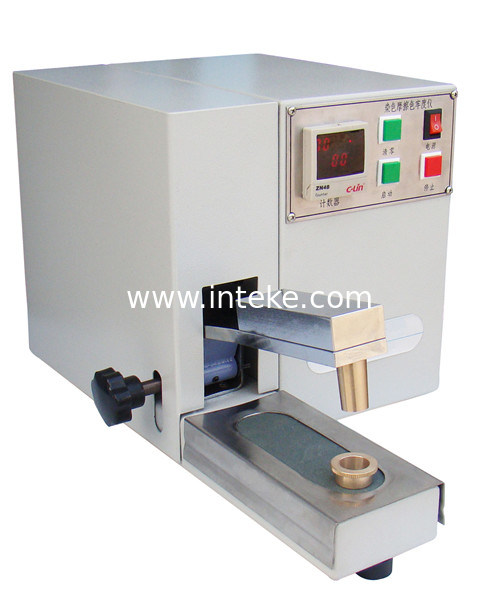

    INTEKE Crock Meter / Color Fastness to Rubbing Tester Y571M

    Preset Type Dry Wet Rubbing Color Fastness Testing Machine Y571M for Printing Dyeing Yarn Spin Clothing Textiles



    To know more about this product, please send your E-mail to us: inteke@vip.163.com or inteke@gmail.com.



    We will reply you at first time.







    Preset Type Electric Dry Wet Crock Meter Y571M is mainly used for cotton, wool, linen, silk yarn, knitting, dyeing and other industries, as the tester to test all kinds of textiles color fastness to dry, wet rubbing.

    It complies with GB/T420, GB/T3920-2008, ISO105, AATCC , BS, JIS standards.

    This color fastness tester does the standard length of the reciprocating linear motion under standard frequency by the standard weight friction head.

    Fine workmanship, craft exquisite, smooth operation.





    Preset Type Dry Wet Rubbing Color Fastness Testing Machine Y571M for Printing Dyeing Yarn Spin Clothing Textiles



    Y571M tester is designed to provide a quick and accurate method to determine and assess the amount of color transferred from dyeing textile materials to other surfaces by rubbing. It has two testing methods: dry and wet.

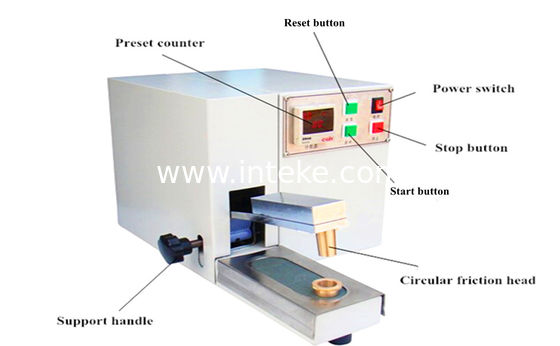

    This support handle is used to change the sample.

    Turn the handle clockwise to support the support rod, and turn it counterclockwise to put the rod down.

    It should be grounded.





    Preset Type Dry Wet Rubbing Color Fastness Testing Machine Y571M for Printing Dyeing Yarn Spin Clothing Textiles



    Technical index:

    • Diameter of Friction Head: Φ16mm±0.1mm(circular)
    • Friction head pressure: 9N±0.2N
    • Friction Track: 104mm±3mm
    • Test Speed: 60±3 times/min
    • Setting range of reciprocating frequency: 1~9999×100
    • Test Bench Underlay Thickness: 0.25mm(waterproof fine sandpaper)
    • Dimensions & Weight: 43×28×26cm 10KG
    • Power: AC 220V±10% 50HZ 20W

    Preset Type Dry Wet Rubbing Color Fastness Testing Machine Y571M for Printing Dyeing Yarn Spin Clothing Textiles
